Still not fast on the ship? Silver Battleship with MX150 is ready to go
[PConline stand-alone evaluation] NVIDIA recently released the GeForce MX150 "preferred" notebook graphics card, as the successor to the GeForce 940MX celebrity graphics card, MX150 is designed for notebooks with work and entertainment needs, using the award-winning NVIDIA Pascal architecture, Advanced technology and architecture bring better energy performance. Notebooks equipped with this graphics card can not only have excellent performance, but also have lasting battery life. It is ideal for notebooks with thin and light office and audio/video entertainment.
As the first notebook equipped with a GeForce MX150 graphics card, the MSI PL62 7RC's performance is also very exciting. Its distinctive body color and exquisite design give it the title of "silver battleship." Then let us take a look at the "silver battleship" style.
First, the hull design (product appearance)MSI PL62 7RC-005CN machine uses silver as the main color of the product, can emit dazzling brilliance under the bright light, giving a sense of future technology, with a sleek and simple design, "silver battleship" title can be said Very appropriate. In terms of material details, this machine is not a metal material, but the A-side and C-side of the product can clearly see the beautiful design of the metal hairline texture. Just like a fashion handicraft, you can feel fine and smooth along your hand. Slippery touch, from here you can see the superb notebook production process.
On the other hand, this notebook uses a relatively thin body design, 383 (W) mmx260 (D) mmx27 (H) mm size, 2.2kg weight, in the machine quality and portability has certain advantages.
MSI PL62 7RC uses a 15.6-inch 1920x1080 resolution HD matte screen, this screen has a more extensive visual color gamut and high-order color resolution, bright and sharp colors, 170-degree wide-angle design allows users to be different The angle can see the image of the screen.
The high-definition camera at the top of the screen can perform high-definition video chat, and the built-in microphone can also ensure the clarity of voice calls.
In terms of the keyboard, the silver battleship uses an ergonomic keyboard. From the appearance, the design style is simple and elegant. The key symbol is a brand-new typeface design and full of artistic sense. The reasonable key process design with a full-size keyboard, using the feel comfortable and natural, will not appear wrong operation. At the same time, key feedback is neat and simple, moderate pressure, smooth and comfortable continuous percussion.
On the other hand, the touch panel and the keyboard C face are all designed in one piece, and the same color combination makes the two integrated. In touch sensitivity, the touch panel's friction is greater than the notebook C surface, but there is no sense of jerky in the use of the process, responsive and accurate positioning, with two separate exquisite workmanship keys, the actual experience is very good.
It is worth noting that the "Silver Warship" is a laptop with a focus on product details and user experience. The exquisite details fully embody MSI's superb control of the product's craftsmanship. Its tight borders and solid workmanship add color to the notebook. A lot. At the same time, the product is also very intimate in the experience design, the design of the larger shaft damping can make the notebook stable at a fixed angle. On the C side of the product, a quick start button (fan configuration, Dragon Center) is configured next to the power button. This button is convenient for setting the fan speed or system environment so that the user can be distracted during the game without having to configure the hardware.
In the product interface settings, the MSI PL62 7RC sets most of the interfaces on the left side of the fuselage, with relatively few interfaces on the right side. The left side interface is anti-theft lock hole, RJ45 network port, two USB3.0 ports, HDMI port, Mini-DisplayPort port (Mini-DisplayPort is a reduced version of the Display port, you can use the VGA in the appropriate adapter , DVI or HDMI interface) and audio port jacks (headphones and microphone), the right side of the interface is the power connector, USB2.0 port and card reader interface, in general, this notebook's interface is still very rich , can meet the daily needs of different expansion, at the same time, HDMI, Mini-DisplayPor etc t-port settings is to broaden the scope of use of the product, in some work scenarios can also play a role, Matrix Display technology is more designers and business people Gospel.
In addition to the exquisite product design, the "silver battleship" also inherited a number of premium features of the Prestige series, which greatly improved the notebook experience.
â— Matrix Display
MSI is the world’s first brand to introduce Matrix Display multi-screen output function to products, and the Prestige series also supports this technology, allowing users to easily connect externally via the laptop's built-in HDMI 1.4 and Mini-DisplayPort 1.2. Two high-definition screen outputs, plus laptop screens, provide 2+1 high-quality screen output, allowing users to enjoy the efficiency gains of multi-screen work.
â— Nahimic 2+
Nahimic sound enhancement software can adjust the sound performance of the notebook, can provide better sound quality, game players can enjoy the presence of shocking sound effects. (Details will be described below)
â— Cooler Boost
MSI P series laptops equipped with the new Cooler Boost cooling system, can provide a powerful cooling efficiency, lower noise values, in a quiet environment will not be affected by the fan noise.

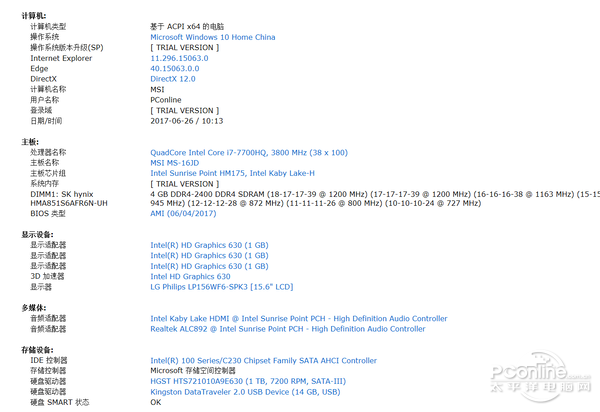

In terms of overall hardware configuration, this PL62 7RC is equipped with an Intel Core i7-7700HQ processor, built-in NVIDIA GeForce MX150 and Intel HD Graphics 630. In terms of storage devices, this notebook is equipped with 4GB DDR4 memory, 1TB HDD (7200 rpm) hard disk, from the hardware configuration, the storage device is not a color (4GB+1TB HHD), but carrying the latest MX150 graphics is full of expectations.
This machine uses Intel Core i7-7700HQ processor, this processor is based on 14nm manufacturing process, the core code is Kabe Lake, with four core eight threads, the default frequency is 2.8GHz, the maximum core frequency up to 3.8GHz, 6MB The three-level cache, thermal design power (TDP) is 45W.
CineBench is a persuasive CPU and graphics test software based on MAXON's award-winning Cinema 4D effects engine for cross-system and platform performance testing. The test includes two items, each for the performance indicators of the graphics card and the processor. From the test results, it can be seen that the processor has a single core acquisition of 160cb and multi-core 724cb. From the score ranking point of view, this processor should be a high-end level notebook processor.
As a highlight of the "Silver Warship", the NVDIA GeForce MX150 graphics card can be said to add a lot of color to the product. Compared to the Maxwell architecture's GeForce 940MX, the MX150 has greatly improved its performance, but its power consumption is even lower. A good extension of the notebook's life. In addition, the MX150 has 40% and 33% improvement in Adobe's video transcoding and photo editing, and has fully rolled out the core.
In terms of related specifications, the GeForce MX150 uses the award-winning NVIDIA Pascal architecture, with 384 CUDAs, 16 ROP units, 64-bit wide, and 2GB GDDR5 memory.
MX150 graphics card compared to the GT940MX upgrade is still very obvious, especially the GT940MX is based on the relatively old 28nm process, high power consumption, heat is too large, and the new generation of MX150 16nm not only improved performance, power consumption also reduced a lot, more Helps improve notebook performance and battery life, and lower heat.
The 3DMark Sky Diver is a DirectX 11 benchmark that can be used on gaming laptops and mid-range PCs. This project can be used to benchmark mainstream graphics cards, mobile device GPUs, or integrated graphics cards. Graphics test 1 focuses on surface subdivisions and uses forward lighting. Graphics test 2 focuses on pixel processing and uses computer-based shader-based delay tiles. Lighting method. In terms of physical testing, the physical simulation uses progressively more statues to test CPU performance.
In the Sky Diver test, the PL62 7RC scored a final score of 11,222, with a score of 11,970 points on the graphics card and the overall performance was excellent.
Fire Strike is used for high-performance game-specific computers. This test can fully retain the details and complex elements of graphics while rendering the graphics in real time.
3DMark Fire Strike Extreme is an enhanced version of Fire Strike designed for high-end multi-GPU systems (SLI/Crossfire) and future hardware products.
For mainstream games, the more popular games should be GTX1050/GTX1050 Ti, GTX1060, GTX1070, GTX1080, etc. What is the level of MX150 graphics for these mainstream game cards? In order to better understand the graphics performance, we collected GTX940MX, GTX950, GTX960M, GTX1050 running points for comparison.
From the Fire Strike and Fire Strike Extreme scores, the MX150 graphics card is stronger than the GT940MX, close to the GTX950M, and there is a certain gap between the GTX1050/GTX1050 Ti. Overall, the MX150 is close to the mainstream level. Compared with the previous 940MX, the MX150 has been greatly improved. With lower power consumption, the experience is undoubtedly even better.
PCMark 8 is an industry-standard computer performance test tool with a professional test system that can test the performance of all types of computers from tablet computers to desktop computers. PCMark8 uses five separate benchmarks and battery life tests to measure and compare computer performance through actual application tasks and applications, and then group these applications into different scenarios to reflect the typical use of home and work computers.
In this test, we chose PCMark 8's Creative Test project to test the notebook. PCMark8's Creative Test mainly includes the common workload of enthusiasts and professionals in media and entertainment content. Compared with the home test, this test is more stringent and therefore suitable for mid-sized computer systems. Creative tests include workloads such as web browsing, photo editing, video editing, group video chat, media code transcoding, and games.
The MSI "Silver Warship" scored 4051 under the PCMark 8 Creative Test project. In order to better understand this score, we can combine the following score rankings, 4015 this score has been higher than 48% of other product scores, so in terms of entertainment performance, this notebook should be a high-end level.
In the following tests, we will test the MSI PL62 7RC through some games. In terms of large-scale stand-alone games, we chose “Grand Theft Auto 5†to test, and in the most popular online games, we have chosen “watching. Pioneer conducted "as a test project, these games have more audience in different fields, so choose to have a certain representative as a test.
â— Grand Theft Auto V (Grand Theft Auto V)
Grand Theft Auto 5, short for GTA 5, is an action adventure game produced and released by Rockstar Games. The game uses a new version of the Thunder engine (RAGE engine), and its display performance is extremely powerful. The story of the game takes place in the city of Los Santos, which is based on Los Angeles, Southern California and its surrounding areas. The production unit photographed more than 250,000 related photos and studied population surveys and car sales data to build the world of games.
In terms of game configuration, in the 1920X1080 resolution, the game texture quality is set to normal, and the effects of shadows, reflections, and particles are increased.
In the sampling result of 50 game frames, the highest frame number is 47fps, the lowest is 25fps, and the average frame number is 39 frames (orange in the figure). The large fluctuations in the number of frames may be related to game optimization and changes in the differences between different game scenarios.
In the actual test, the overall running of the game is basically smooth, and the performance under different game scenarios is still OK. If some details and effects are lowered, there will be better performance.
â— "watch pioneer"
Watchman Pioneer is a first-person shooting game produced and distributed by Blizzard. Although it is an FPS game, but it does not blindly pursue the quality of the picture, Blizzard is more concerned about training the player's team spirit. The battle rhythm of the game is fast, and the positioning of the characters is roughly divided into four types: attack, defense, shield, and assist. The players must work together to win the game. Individualism does not work here.
In terms of game configuration, at a resolution of 1920×1080, we set the image quality to extremely high and the special effects to a higher level.
In the 25 game frame sampling results, the highest frame number is 72fps, the lowest is 51fps, and the average frame number is about 62.8 (orange in the figure), and the number of frames is relatively stable.
Judging from the actual game effects, under extremely high quality, the game runs smoothly, and it seems that there is not much pressure to run mainstream online games.
MSI PL62 7RC has multiple heat dissipation holes at the bottom and the back of the fuselage, especially the large ventilation holes at the bottom of the fuselage, which greatly enhance the cooling effect of the whole machine. The D-side gasket design pulls the distance between the body and the horizontal plane, which is more conducive to the circulation of air and also helps the heat dissipation. At the same time, with Cooler Boost cooling system, people have high expectations for the heat dissipation capability of the product.
AIDA64 is a tool for testing software and hardware system information. It not only provides various functions such as assisting overclocking, hardware debugging, stress testing, and sensor monitoring, but also provides comprehensive performance on processor, system memory, and disk drives. Evaluation. We will use the system stability test of AIDA64 to test the cooling capacity of the notebook. Under high load conditions, AIDA64 can monitor temperature, fan speed, and voltage to monitor thermal performance based on real-time updated charts. In the strength test, the test data can be used to register the lowest, highest, and average values ​​displayed by the sensor.
Nearly an hour or so of high-pressure load (100% CPU), the "silver battleship" heat remains good, the CPU temperature is maintained at an average of 85 degrees. (maximum fan speed is not turned on in the test project)
After running MSI PL62 7RC at a high load for one hour, according to the images generated by the thermometer, we can see that at a room temperature of 29 degrees, the body temperature reached a maximum of 46.6 degrees, and the high temperature area was mainly concentrated in the middle of the keyboard. During the actual use, some heat can be felt, but there is no obvious feeling of "bake hands."
Since the D surface is provided with a lot of ventilation holes, it can be seen that there are red marks around multiple positions of the ventilation holes, which indirectly explains the good heat dissipation capability of the machine, and the highest temperature of 44.2 is also acceptable.
Overall, MSI PL62 7RC this notebook's cooling effect is quite good, because the normal use of the process, long-term high-load operating conditions are not common, so the daily use of the temperature is obviously lower than the test results, In addition, this During the test, the maximum fan speed was not turned on, so there should be better cooling performance after opening.
V. Product Features and Evaluation Summary1, product features
Dragon Center is a powerful tool-based software that can monitor and set up the system environment and remotely control the mobile app. Users do not need to open more than one piece of software, and they can use MSI's own tools for overall scheduling, which is very convenient to use.
Nahimic audio software has always been one of the features of MSI gaming. It supports a 360° virtual surround sound output experience and also provides clearer recording capabilities. Nahimic 2 is an upgraded version of Nahimic audio software. In addition to supporting Nahimic's original audio optimization function, it also provides a "voice tracker" function designed specifically for game players, allowing players to visually judge in the game more intuitively. The position of the opponent.
Shortcut Manager This software can set hotkeys according to the user's own needs, help to improve work efficiency, and get a more convenient experience.
2, product data and test scores
According to all the information, as an entry-level game, the overall performance of the MSI PL62 7RC is still good. It can smoothly run mainstream games while also providing excellent audio and video experience. On the other hand, the combination of i7-7700HQ+MX150 is also a good choice. If you upgrade the storage device (memory and hard disk), you should get a better experience.
2, written at the end
The design of MSI PL62 7RC (silver battleship) is very good. The exquisite material is filled with the texture of fashion arts and craftsmanship. The style is very impressive. In terms of hardware configuration, i7-7700HQ and MX150 can meet the general game audio and video requirements, and good heat dissipation can also guarantee the smooth running of the program. At the same time, this game also shows a strong office capabilities, Matrix Display technology, Mini-DisplayPor port settings is a great increase in the efficiency of the work, Dragon Center, Nahimic and other special tools can also be very easy to manage the notebook And settings. All in all, the MSI PL62 7RC notebook is a very "comprehensive" notebook, very entertaining audio-visual enthusiasts or light gamers.
