Design of multi-channel multi-purpose instrument based on ICL7107
**1. System Overall Design**
**1.1, Design Goals**
This design is centered around the ICL7107 chip to develop a digital instrument capable of measuring multiple voltages and currents simultaneously. The motivation behind this project comes from the importance of monitoring various parameters in relay protection systems. Therefore, the design aims to fulfill the following objectives:
1) The primary function is to measure several voltages and currents at the same time;
2) If the load current exceeds a set threshold, an alarm signal is triggered, and the power supply is automatically disconnected for safety;
3) The system should be cost-effective and highly reliable;
4) It should provide a clear digital display for easy reading.
**1.2, Overall Plan**
The system block diagram is illustrated in Figure 1.

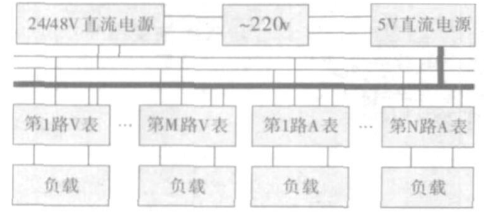

Figure 1 – System Overall Design Block Diagram
In Figure 1, the 24/48V DC power module consists of two independent 24V DC power supplies that can be combined to form either a 24V or 48V DC power source, depending on the load requirements. Some auxiliary functions like protection are included within the power module to streamline the overall design. The 5V DC power supply is generated through a transformer with M+N independent windings on the secondary side. After rectification and filtering, it provides a stable 5V DC to power the ICL7107 chip. The reason why the system block diagram uses thick black lines to connect the 5V power supply and each meter, rather than using positive and negative poles like the 24/48V DC power supply, will be explained in detail during the system integration phase. **2, System Detailed Design** **2.1, ICL7107 Performance Profile** The ICL7107 is a high-performance, low-power, dual-integrated three-and-a-half-digit A/D converter. It includes analog components such as buffers, integrators, voltage comparators, reference sources, and analog switches necessary for A/D conversion. Additionally, it integrates digital circuits like oscillators, counters, latches, decoders, drivers, and logic control circuits, which allow it to directly drive LED displays. **2.2, Digital Voltmeter Design** The digital voltmeter designed here operates on a single +5V power supply and uses an external reference source mode. The schematic diagram is shown in Figure 2.

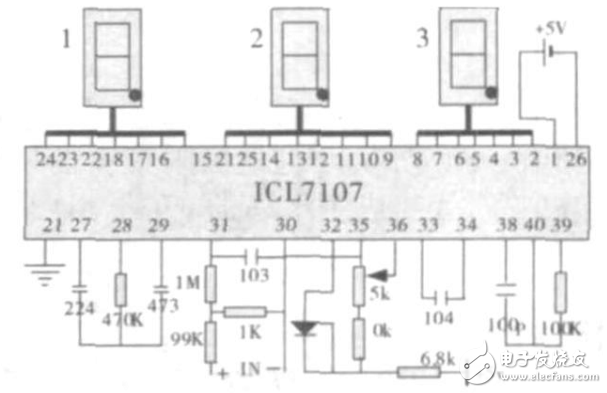

Figure 2 – Voltmeter Schematic
Since the system typically operates at 24V or 48V, and the ICL7107 is a three-and-a-half-digit converter, the designed digital voltmeter has a range of up to 99.9V. The decimal point is fixed on the second digit in Figure 2. As shown, the input terminal uses a 99kΩ and 1kΩ voltage divider circuit. When the maximum input voltage is 99.9V, the voltage entering the chip after division is approximately 1V, which is suitable for the ICL7107’s input range.TV Antenna, also commonly referred to as a television antenna, stands as a pivotal element in the realm of television signal reception. It functions as a bridge between the broadcasting towers and your television set, enabling viewers to access a myriad of television channels and indulge in a vast array of programming content. This versatile device harnesses the power of electromagnetic waves to capture and convert signals into viewable images and sounds, offering a seamless entertainment experience.
